Anatomy · Shoulder · Rotator cuff

The Infraspinatus Muscle in 3D

The infraspinatus in 3D, layer by layer, then on labeled MRI slices. With its footprint, wider and more anterior than once described, its innervation at the spinoglenoid notch, and the landmarks for reading its fatty infiltration.

Designed by an orthopedic surgeon

See the MRI slices Open the rotator cuff in 3D

Latin musculus infraspinatus · French infra-épineux, sous-épineux

The infraspinatus in 3D seen from behind: from the infraspinous fossa to the greater tuberosity, below the scapular spine; supraspinatus and teres minor faded.
Render of the EMET Education 3D model.

At a glance

Origin, insertion, innervation

Sources: Gray's Anatomy; insertion: Mochizuki, Curtis; innervation: Warner, Kato; action: Ward.
OriginMedial two-thirds of the infraspinous fossa and infraspinous fascia.
CourseConverges laterally, behind the scapular neck and the capsule, beneath the posterior deltoid, to the posterosuperior aspect of the humeral head.
InsertionMiddle facet of the greater tuberosity. Its superior tendinous portion curves anteriorly to the anterolateral highest impression, covering the posterior border of the supraspinatus; inferiorly, the insertion tapers away from the cartilage, framing the bare area. Trapezoidal footprint.
InnervationSuprascapular nerve (C5, C6), after the spinoglenoid notch; three or four motor branches of similar size in about half of shoulders. Its transverse part receives branches arising proximal to the notch.
Blood supplySuprascapular and circumflex scapular arteries.
ActionLateral rotation of the arm; posterior stabilization of the humeral head, under passive tension at rest with the supraspinatus.
RelationsSuperiorly, the scapular spine and the supraspinatus; inferiorly, the teres minor, with no gap between the two tendons; superficially, the posterior deltoid laterally and the trapezius medially; deep, the fossa, the posterior capsule and, at the spinoglenoid notch, the suprascapular nerve.

Layer by layer

From the trapezius to the tendon

The same view, from behind, slightly above and lateral to the shoulder, removing one layer per image.

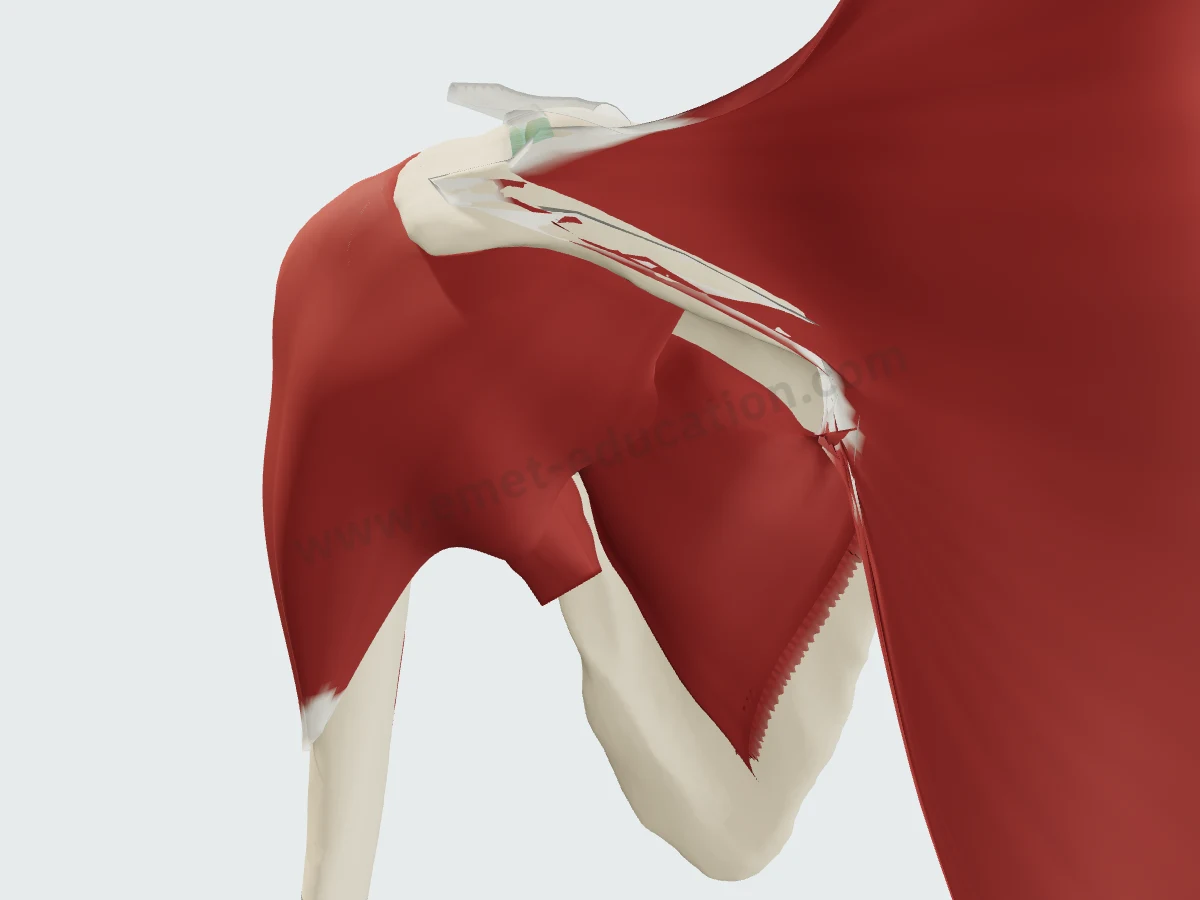

  1. 3D shoulder from behind: trapezius and deltoid in place.

    Trapezius and deltoidThe infraspinatus shows only between the trapezius, medially, and the deltoid, laterally.

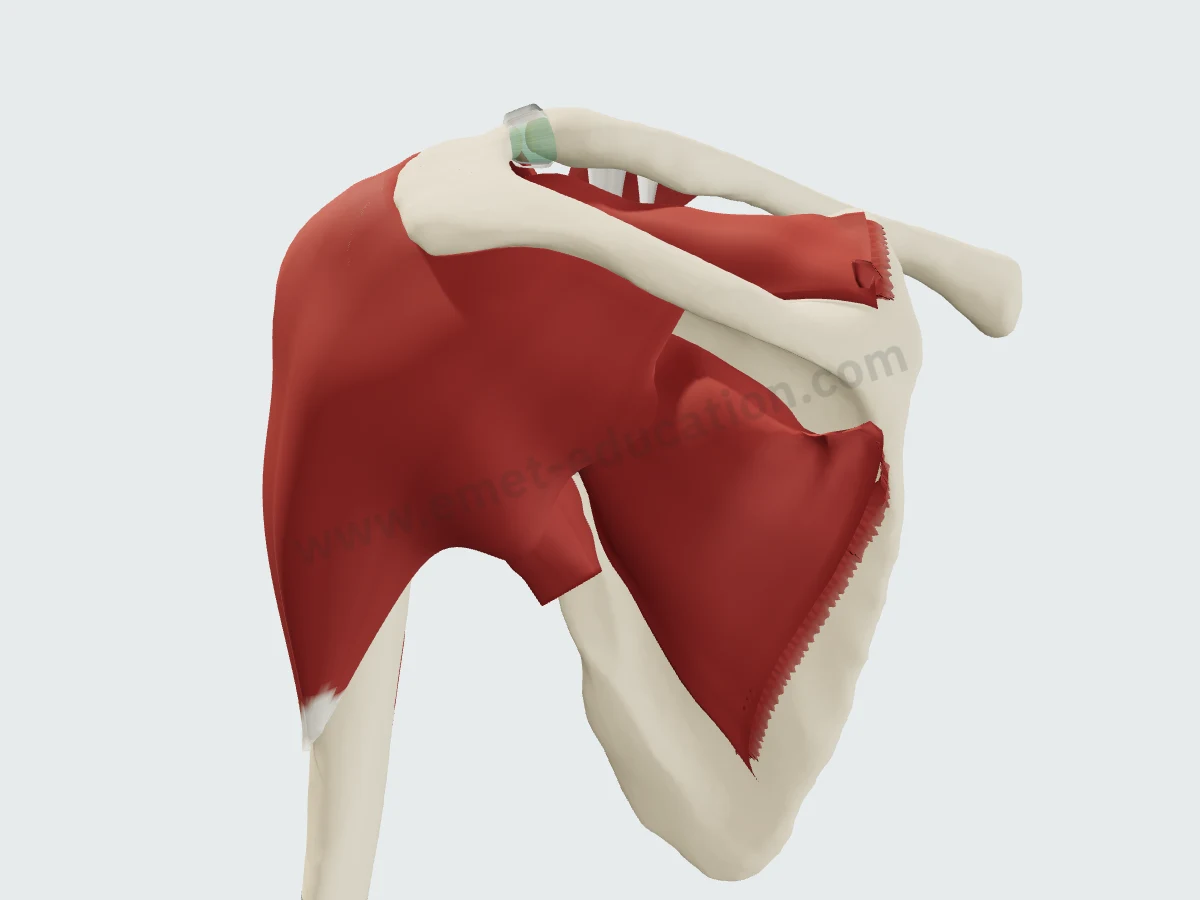

  2. Trapezius removed: posterior deltoid over the lateral infraspinatus.

    The posterior deltoidTrapezius removed: the posterior deltoid covers the lateral part of the muscle and the humeral head.

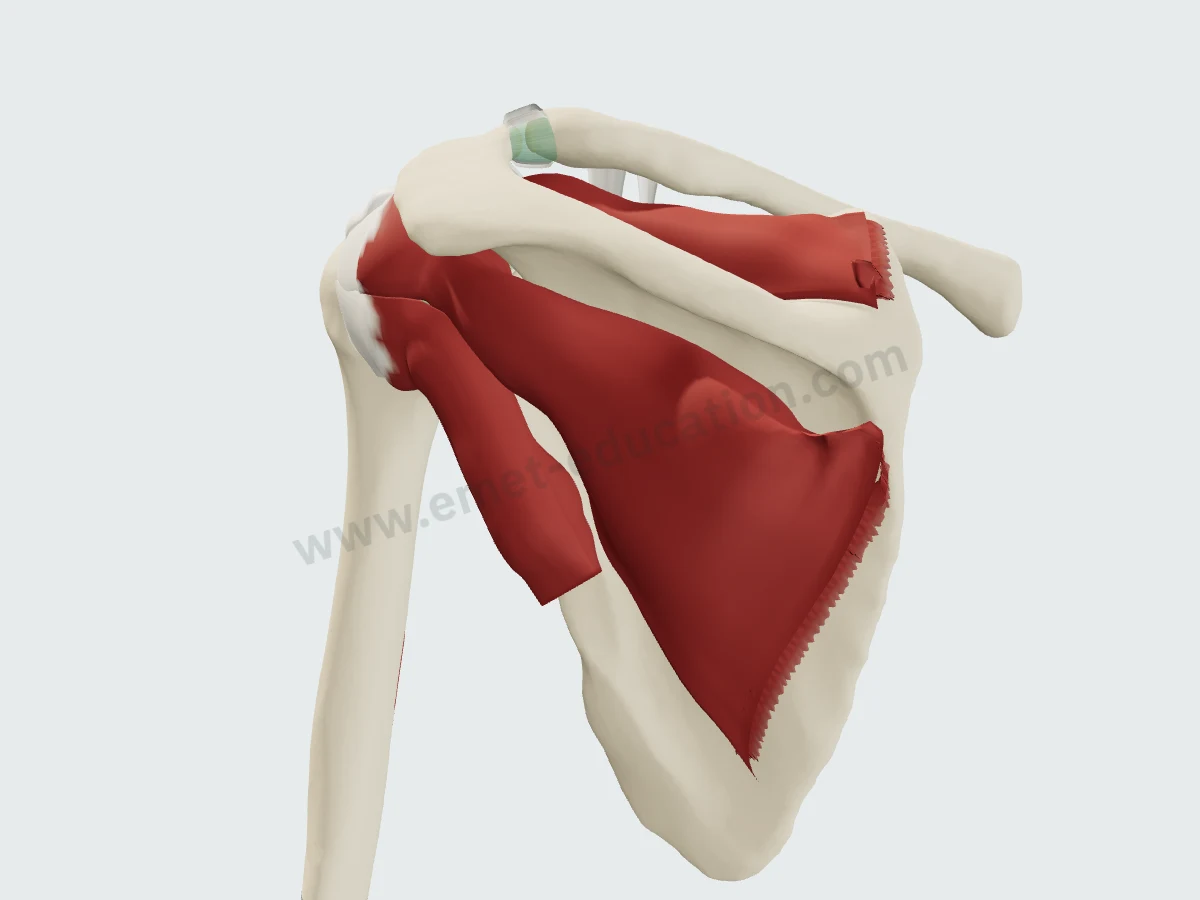

  3. Deltoid removed: supraspinatus, infraspinatus and teres minor from behind.

    The posterior cuffDeltoid removed: the supraspinatus above the spine, the infraspinatus in its fossa, the teres minor below it.

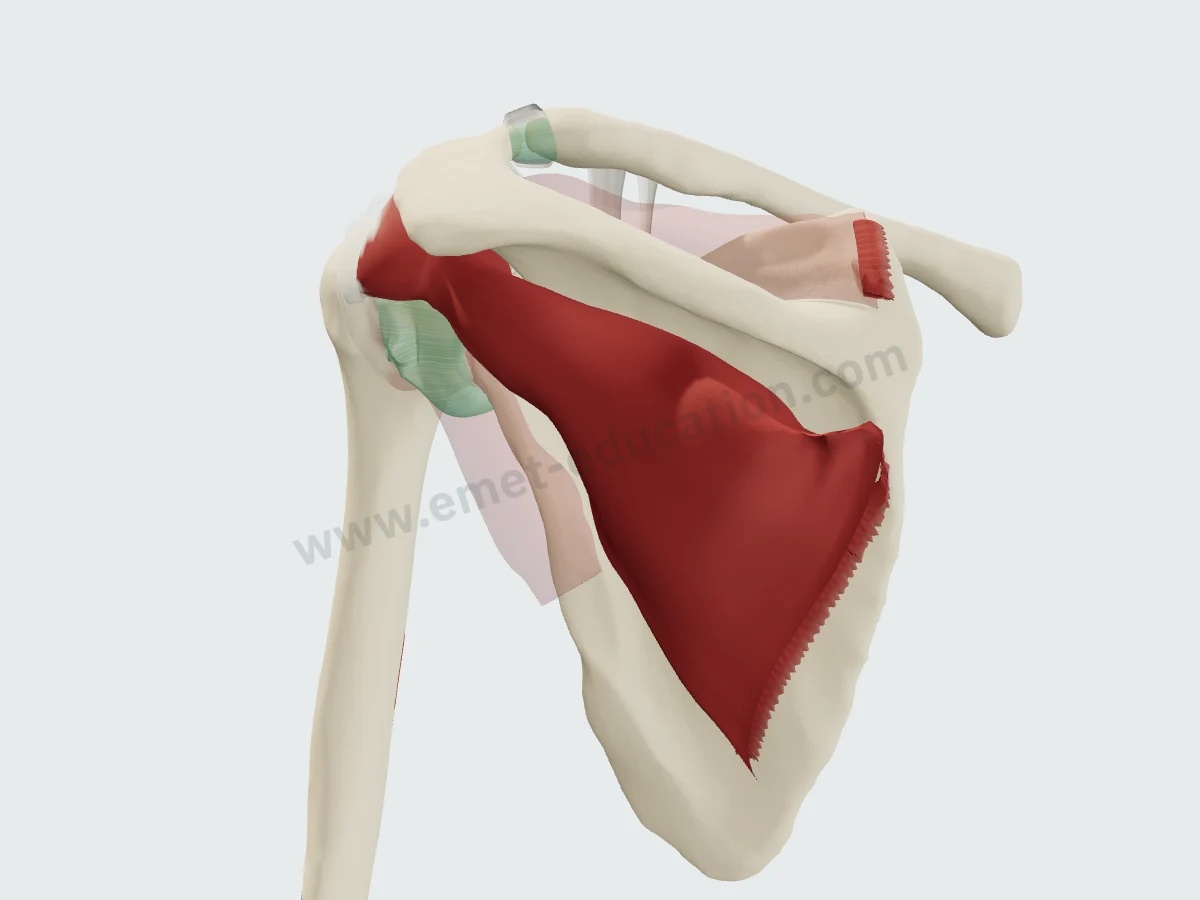

  4. Infraspinatus alone in color, supraspinatus and teres minor faded.

    The infraspinatusOther muscles faded: from the infraspinous fossa to the middle facet of the greater tuberosity.

Imaging

The infraspinatus on MRI and CT

Synthetic images. These slices do not come from a patient: they are computed from the 3D model, by cutting each structure and giving it the signal it would have in the chosen sequence, on MRI or CT. They are for learning where the muscle lies on a slice; nothing is measured on them.

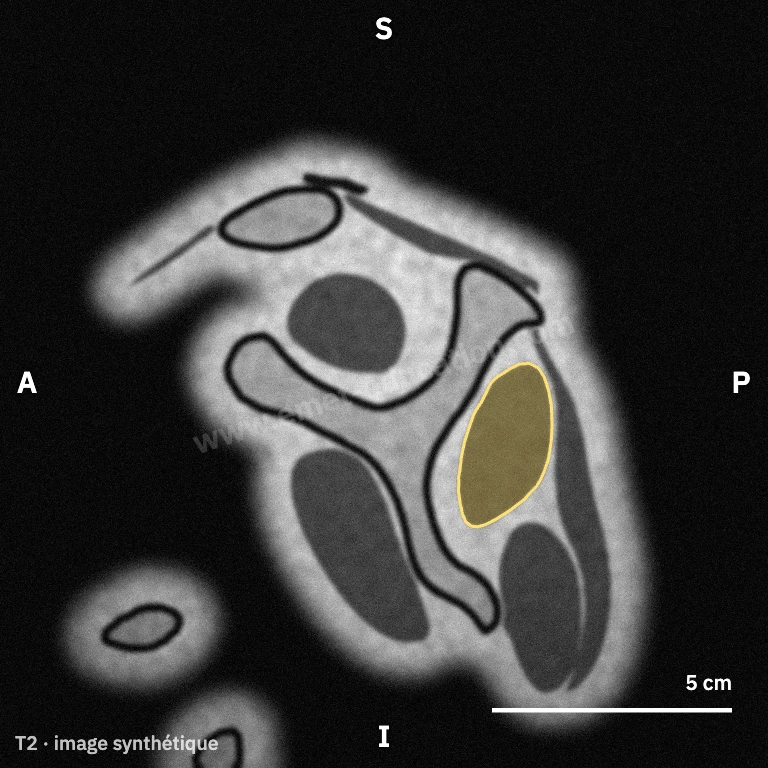

Synthetic MRI, oblique sagittal Y view: infraspinatus in the infraspinous fossa, below the spine.
Oblique sagittal Y viewThrough the medial border of the coracoid, where the spine, coracoid, and scapular body form a Y: the infraspinatus fills the fossa behind the body, below the spine, with the teres minor beneath it. On these parasagittal slices, cuff muscle cross-sectional areas separate tear stages from asymptomatic subjects (Zanetti).

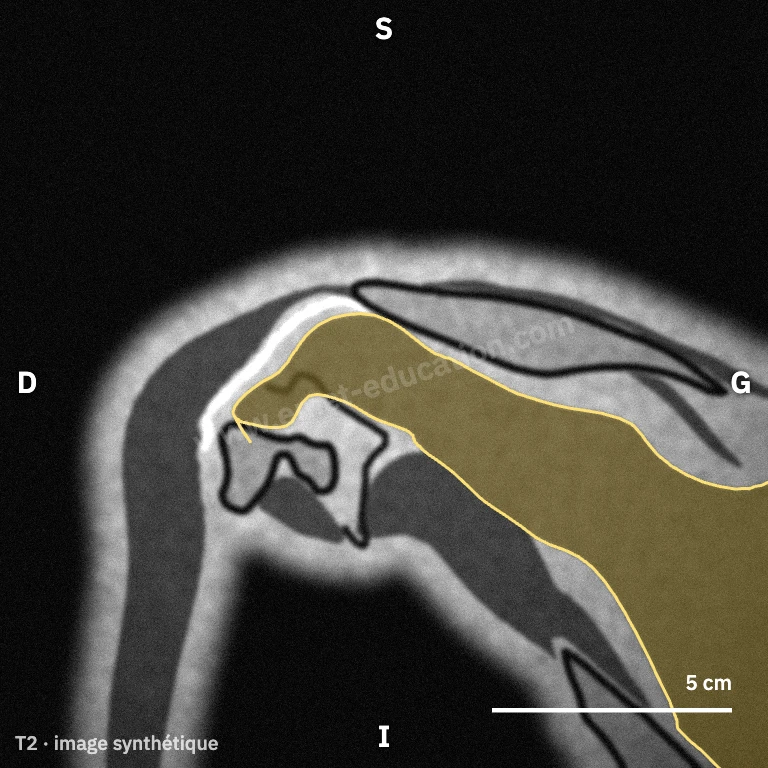

Synthetic MRI, posterior oblique coronal view: the infraspinatus from the fossa to the greater tuberosity.
Posterior oblique coronal viewParallel to the scapular plane, 25 mm posterior to the supraspinatus slice: the muscle below the spine, then the tendon passing over the head to the greater tuberosity.

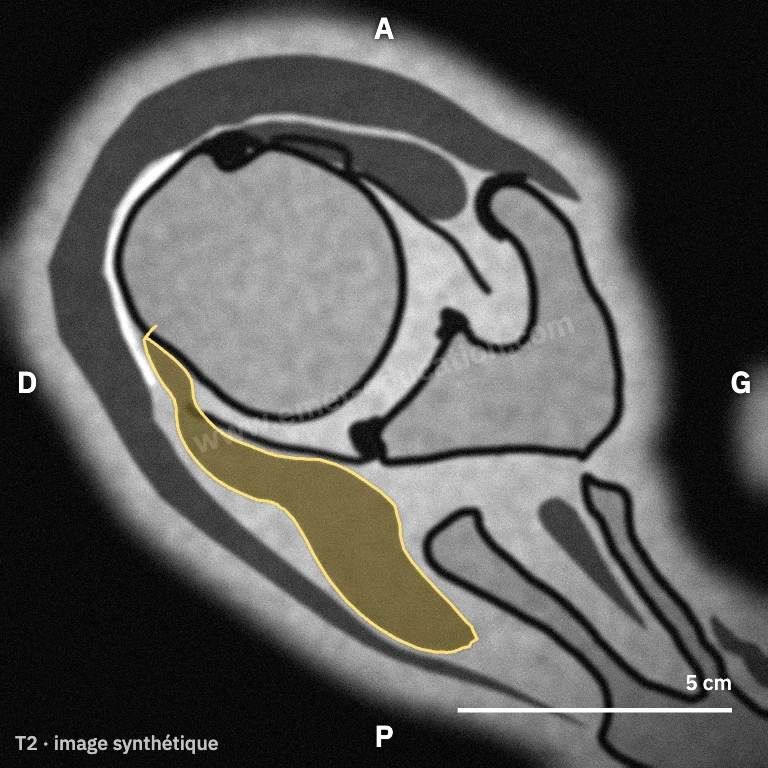

Synthetic MRI, axial view above the center of the head: infraspinatus belly and tendon behind the head.
Axial view10 mm above the center of the head: the muscle belly behind the scapular neck, then the tendon wrapping the head posteriorly to the greater tuberosity. Melis graded its fatty infiltration on axial slices.

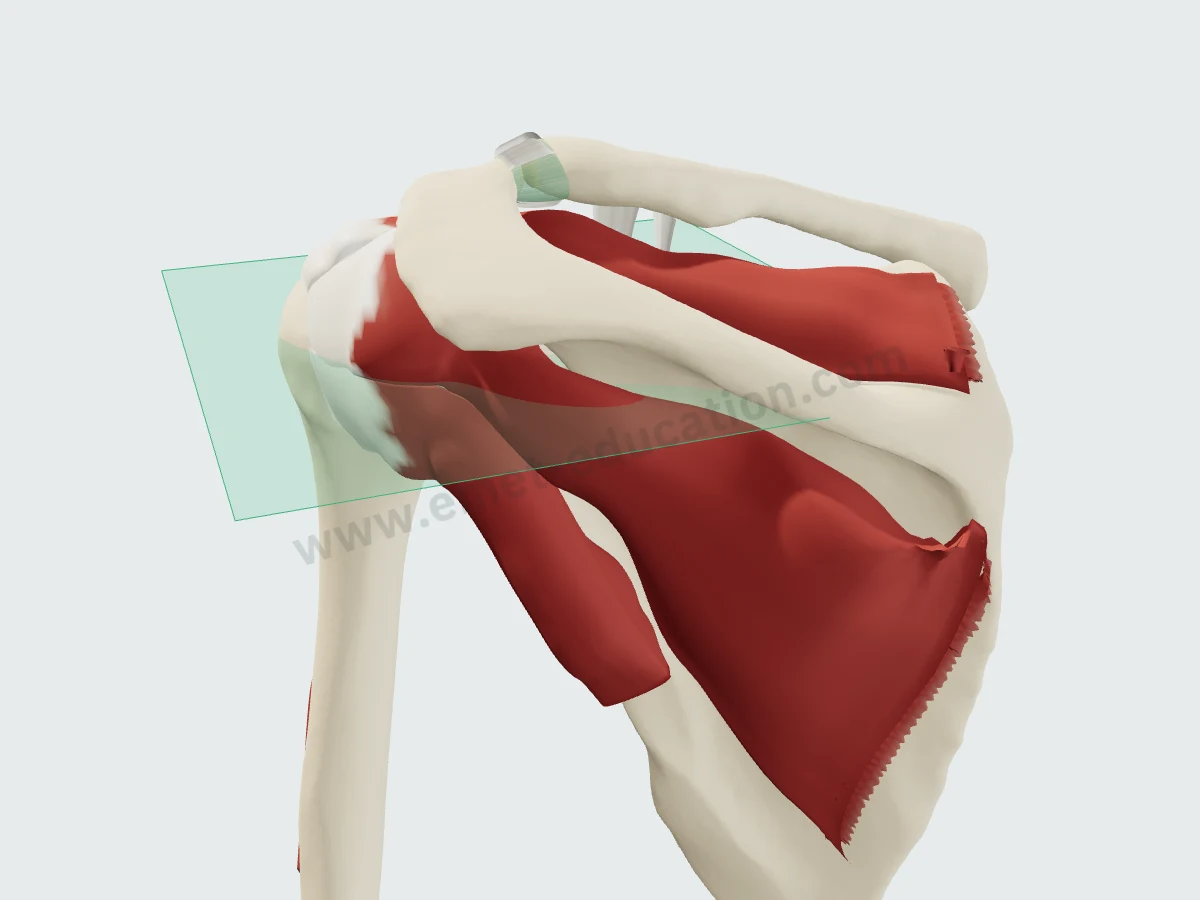

3D shoulder model from behind with the axial plane.

Where the axial view cuts

The axial plane (green) on the 3D model: horizontal, above the center of the humeral head, it crosses the infraspinatus from its fossa to its tendon. Hover over a slice and click “Scroll” to page through it as on a workstation: the supraspinatus appears upward, the teres minor downward.

In numbers

The footprint and the nerve, measured

Published mean values, with sample size and source under each figure.

ValueReferenceYearSampleNote
29 mmCurtis200620 cadaversMean maximum length (29 × 19 mm); orientation to be confirmed in the full text to be confirmed
32.7 mmMochizuki200826 shouldersMean maximum; trapezoidal footprint, extending anteriorly to the highest impression

Published means, from smallest to largest. Sample size is as each study reports it (shoulders, cadavers or specimens); measurement protocols differ from one study to the next.

Curtis 2006 19 × 29 mm Mochizuki 2008 10.2 × 32.7 mm Quarter (24.26 mm) 1 cm

Maximum dimensions, to scale: a bounding box, not the shape of the footprint. Anteroposterior width shown vertically.

  • 9.8 mmPosterior half of the superior cuff tendon, made of supraspinatus and infraspinatus (± 3.2)Mean, 10 shoulders · Minagawa 1998
  • 15–16 mmPosterior to the biceps tendon: the most frequent site of degenerative tears, near the supraspinatus–infraspinatus junctionUltrasound, 360 shoulders · Kim 2010
  • 1 to 3 cmLateral advancement of the tendon before the motor branches tighten (anterosuperior approach, then Debeyre technique)31 shoulders · Warner 1992
  • 12 of 96Elite volleyball players with isolated, asymptomatic paralysis of the dominant-side infraspinatusFerretti 1987
  • 2ndForce-producing capacity in the cuff by physiological cross-sectional area, after the subscapularis10 specimens · Ward 2006

Published footprint dimensions vary from study to study. Mochizuki described a superior tendinous portion curving anteriorly to the highest impression of the greater tuberosity: his 32.7 mm width includes that extension, an area classic descriptions attributed to the supraspinatus.

History

How its description has changed since 1992

Classic anatomy places the infraspinatus on the middle facet of the greater tuberosity, behind the supraspinatus. Studies published since have shown a wider, more anterior insertion, and a muscle in two parts.

  1. 1992

    A common insertion

    The cuff tendons do not insert separately: the infraspinatus interdigitates with the supraspinatus into a continuous insertion. Clark and Harryman

  2. 1993

    The suspension bridge

    The crescent, the thin distal part of the supraspinatus and infraspinatus, is bordered by a thick cable that shields it from stress. Burkhart

  3. 2002

    A large area

    Mapped with a digitizer, its insertion averages 1.76 cm², more than the supraspinatus's (1.55 cm²). Dugas

  4. 2006

    A horseshoe

    Superiorly, it wraps the posterior border of the supraspinatus at the cartilage; inferiorly, it tapers away and frames the bare area. Curtis

  5. 2008

    To the front of the tuberosity

    Its superior tendon curves anteriorly to the highest impression of the greater tuberosity: it occupies much of the area attributed to the supraspinatus, which explains its frequent atrophy in small to medium tears. Mochizuki

  6. 2012

    Two parts

    A main oblique part and a partly independent transverse part, supplied by branches arising proximal to the spinoglenoid notch. Kato

In practice

What anatomy changes in practice

  • Examining it. The external rotation lag sign tests the supraspinatus and infraspinatus, the drop sign the infraspinatus: less sensitive than the Jobe sign but more specific, and the lag grows with tear size (Hertel).
  • Grading its fatty infiltration. It can occur in a large anterosuperior tear with its own tendon intact, does not regress after repair, and weighs heavily on the outcome (Goutallier). On axial slices, stage 2 appears on average 2.5 years after symptom onset, stages 3 and 4 at 4 years (Melis).
  • Thinking of the nerve. Beyond the spinoglenoid notch, the suprascapular nerve supplies only the infraspinatus: a lesion there gives isolated atrophy, as in 12 of 96 elite volleyball players examined, asymptomatic despite 22% less lateral rotation strength (Ferretti).
  • Mobilizing a retracted tear. The motor branches arise 2 cm from the posterior glenoid rim; lateral advancement of the tendon is limited to 1 cm through the anterosuperior approach, up to 3 cm with the Debeyre technique (Warner).
  • Filling a Hill-Sachs lesion. Remplissage is an arthroscopic capsulotenodesis of the posterior capsule and infraspinatus tendon into the defect (Purchase and Wolf).

Your turn

Where is the infraspinatus?

Six unlabeled synthetic slices, in random order: click the infraspinatus. The answer shows its outline.

Unlabeled synthetic MRI slice of the shoulder.

Click the infraspinatus.

Conditions

Classifications

Related classifications

Neighbors

Its neighbors

Questions

Frequently asked questions

Where does the infraspinatus insert?

On the middle facet of the greater tuberosity. Its superior tendinous portion curves anteriorly to the anterolateral highest impression. Its trapezoidal footprint averages 32.7 mm wide and 10.2 mm long (Mochizuki, 26 shoulders), with an area of 1.76 cm² (Dugas).

What nerve innervates the infraspinatus?

The suprascapular nerve (C5, C6), after it passes through the spinoglenoid notch. Its transverse part receives branches arising proximal to the notch (Kato).

How do you examine the infraspinatus?

By lateral rotation strength, the external rotation lag sign and the drop sign, less sensitive than the Jobe sign but more specific (Hertel).

Why does the infraspinatus atrophy in tears that seem to involve only the supraspinatus?

Because it occupies much of the highest impression of the greater tuberosity, long attributed to the supraspinatus (Mochizuki). Its fatty infiltration can occur with its own tendon intact and does not regress after repair (Goutallier).

What is remplissage?

An arthroscopic capsulotenodesis: the posterior capsule and infraspinatus tendon are fixed into the Hill-Sachs lesion to fill it (Purchase and Wolf).

Are the MRI images on this page real?

No: they are synthetic, computed from the 3D model. They show where the muscle lies on a slice; they do not replace an actual exam.

Sources

Author and references

Designed by Mikaël Chelli, MD, orthopedic surgeon, from Gray's Anatomy and articles whose abstracts were checked on PubMed. Last reviewed October 8, 2026.
